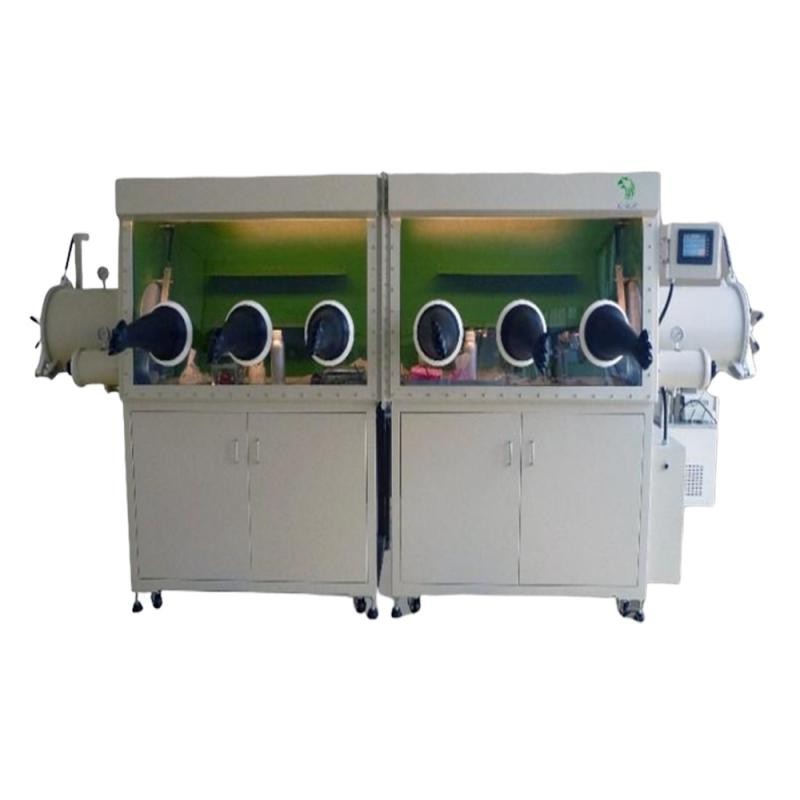

LG300DP glove box (purification regeneration system) [glove box]
(1) Glove box dimensions: 3000L X840W X 920Hmm
(2) Glove box material: stainless steel SUS304, thickness: 3mm, polished sand surface inside the glove box, spray plastic treatment on the outside
(3) Glove box working gas: nitrogen, argon, helium inert gas environment
(4) Reservoir: stainless steel SUS304, thickness: 1.5mm, two layers (900L X 200Dmm*6 pieces)
(5) Lighting: External fluorescent lamp 30W*2
(6) Glove box window: transparent Lexan window, thickness: 10mm
(7) Glove fixing ring: white polyoxymethylene material, size: diameter 220mm, O-ring seal
(8) Gloves: butyl material, thickness 0.4mm, glove weight: 3 pairs
(9) Glove box leakage rate: <0.05Vol%/h
[Electronic control system]
(1) Power supply: 220V/60Hz, 10A, a set of AC110V power socket in the glove box
(2) System control: PLC programmable logic controller 5.7 Chinese and English touch-type man-machine interface controls and displays water oxygen concentration and glove box pressure value
(3) The glove box pressure can be set freely, automatic constant pressure (0-16 mbar) control and pedal pressurization/decompression switch control glove box pressure
[Gas purification/regeneration system and gas pipeline]
(1) Purification system: gas closed-loop cycle dewatering and degassing system
(2) Glove box gas concentration after purification system purification: H2O<1ppm(v), O2<1ppm(v)
(3) Purifier (including catalyst): made of stainless steel SUS 304, with heater for heat preservation, reusable
[gas through system]
Microbox system in the glove box: circular HEPA filter (0.3μm) circulates in the glove box
[Solvent Resistant]
Organic adsorbent: activated carbon adsorbent 10KG, with line KF-40 manual switching valve, three manual valves and vacuum pressure balance valve
[vacuum pump]
Vacuum pump: 12m3/h displacement, oil-saving rotary vacuum pump, vacuum degree <3×10-3 mbar, vacuum pump stops after running
With backstop function (EDWARDS RV-12)
[through hole]
Feedthrough holes on the back of the glove box: 5, KF-40
[passing box]
(1) Large transfer box: stainless steel SUS304, thickness 2mm cylindrical transfer box diameter = 390mm, length = 600mm
Internal polishing treatment, external powder coating, duralumin handle, 10mm thick, internal accessory slide rail
1 oil-filled vacuum gauge, vacuum valve: 1 KF-25 pneumatic valve, 1 pressure balance valve 3/8" solenoid valve
Large transfer case control: manual operation of inner and outer doors, vacuum/pressure balance PLC automatic control
(2) Small transfer box: stainless steel SUS 304, thickness 2mm, cylindrical transfer box diameter = 150mm, length = 300mm
1 oil-filled vacuum gauge for manually controlled 3/8" vacuum/pressure balances
(3) Transmission box leakage rate: <10-5 mbar-l/s
[Water oxygen detector]
(1) Trace moisture analyzer: 0-1000PPM(V)
(2) Trace oxygen analyzer: 0-1000PPM(V)
[GLOVE BOX AUTOMATIC PURGING SYSTEM]
(9) The glove box PURGING system can freely set the water oxygen concentration value, and the concentration detection will automatically start the PURGING glove box
(2) After the glove box breaks into the atmosphere, the Purge system must be activated within 60 minutes, and the automatic rapid Purge should drop below 100ppm. [Water oxygen detector]
