HI-VAC vacuum conveyor manufacturer

Quantity:
  • VC-2

  • Shang Haur Vacuum

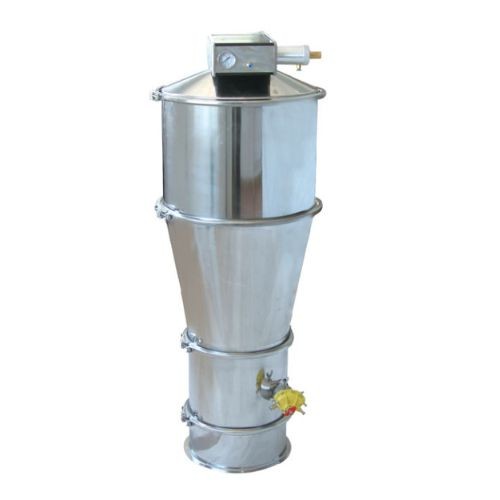

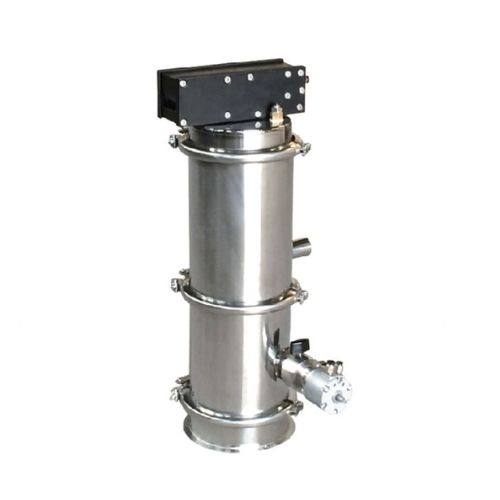

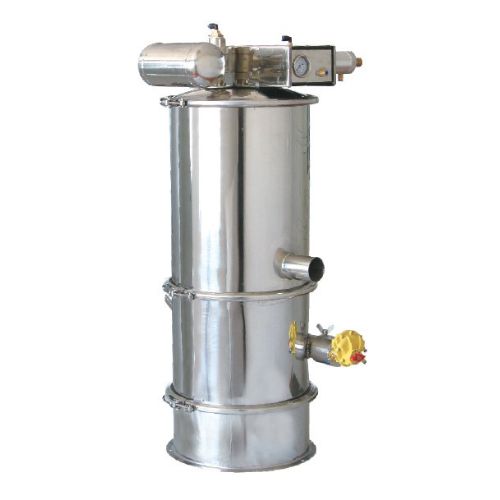

HI-VAC vacuum conveyor




THE HI-VAC vacuum conveyor is a system designed to convey powder particles using aerodynamics and vacuum technology. It is made of stainless steel material, meets food hygiene standards and is suitable for food industry. The conveyor operates in an oxygen-free environment, ensuring the integrity of the conveyed material.

The VC conveyor is versatile and can handle both powder and granulated particles. It is often used for short-distance transportation of various materials such as medicines, food (such as milk powder, coffee beans, flour, monosodium glutamate, etc.), chemical raw materials, and electronic parts.

With many years of experience in conveying systems, HI-VAC vacuum conveyors can be customized to meet specific customer requirements. Additional functions such as feeder, dust-free transfer station and explosion-proof function can be added according to customer needs.

The company also provides pre-sales services, providing expert advice, distribution planning and integration support to ensure conveyor systems meet each customer's unique requirements.





Model Max.
    Conveying. Ca.
    L/h
Conveying
    distance(m)
Meterial Air Consumption
    NL/min
Outside Dimension
    mm
Volume
    L
Working Power
    Mpa
VC-1 50-300 2-3 SUS304 180 140*560 1.1 0.4-0.6
VC-2 50-500 2-4 SUS304 360 302*691 6 0.4-0.6
VC-3 800 2-4 SUS304 720 445*852 12 0.4-0.6
VC-4 2500 2-4 SUS304 1440 672*1400 40 0.4-0.6
VC-5 4500 2-4 SUS304 2880 672*1513 60 0.4-0.6





Model Max.
    Conveying. Ca.
    L/h
Conveying
    distance(m)
Meterial Air Consumption
    NL/min
Outside Dimension
    mm
Volume
    L
Working Power
    Mpa
VC-1 50-300 2-3 SUS304 180 140*560 1.1 0.4-0.6
VC-2 50-500 2-4 SUS304 360 302*691 6 0.4-0.6
VC-3 800 2-4 SUS304 720 445*852 12 0.4-0.6
VC-4 2500 2-4 SUS304 1440 672*1400 40 0.4-0.6
VC-5 4500 2-4 SUS304 2880 672*1513 60 0.4-0.6




Competitive Price:
Place of Origin: New Taipei, Taiwan
Sales Method: Export, Manufacture, Wholesale
Payment Term: T/T, L/C
