VC conveyor
HI-VAC

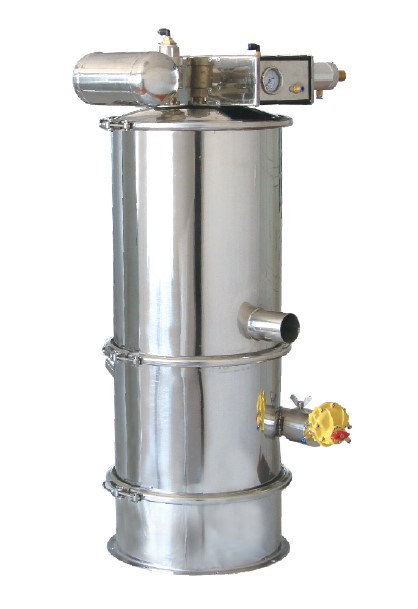

The VC conveyor is driven by aerodynamics to generate a vacuum to achieve the conveying of powder particles. The material is made of stainless steel to meet the requirements of food hygiene level. It can complete the work of conveying powder particles in an oxygen-free environment.
VC conveyor is suitable for conveying powder and granular powder, and can be suitable for short-distance conveying of medicines, food, milk powder, coffee beans, flour, monosodium glutamate, chemical raw materials, electronic parts, etc.
We have accumulated many years of conveying experience. According to customer needs, we can provide the setting of feeder, dust-free transfer station, or provide explosion-proof level. If we need to provide pre-sales service, we are happy to provide professional advice and provide Relevant distribution and integration output
Model | Max. Conveying. Ca. L/h | Conveying distance(m) | Meterial | Air Consumption NL/min | Outside Dimension mm | Volume L | Working Power Mpa |
VC-1 | 50-300 | 2-3 | SUS304 | 180 | 140*560 | 1.1 | 0.4-0.6 |
VC-2 | 50-500 | 2-4 | SUS304 | 360 | 302*691 | 6 | 0.4-0.6 |
VC-3 | 800 | 2-4 | SUS304 | 720 | 445*852 | 12 | 0.4-0.6 |
VC-4 | 2500 | 2-4 | SUS304 | 1440 | 672*1400 | 40 | 0.4-0.6 |
VC-5 | 4500 | 2-4 | SUS304 | 2880 | 672*1513 | 60 | 0.4-0.6 |
The VC conveyor is driven by aerodynamics to generate a vacuum to achieve the conveying of powder particles. The material is made of stainless steel to meet the requirements of food hygiene level. It can complete the work of conveying powder particles in an oxygen-free environment.
VC conveyor is suitable for conveying powder and granular powder, and can be suitable for short-distance conveying of medicines, food, milk powder, coffee beans, flour, monosodium glutamate, chemical raw materials, electronic parts, etc.
We have accumulated many years of conveying experience. According to customer needs, we can provide the setting of feeder, dust-free transfer station, or provide explosion-proof level. If we need to provide pre-sales service, we are happy to provide professional advice and provide Relevant distribution and integration output
Model | Max. Conveying. Ca. L/h | Conveying distance(m) | Meterial | Air Consumption NL/min | Outside Dimension mm | Volume L | Working Power Mpa |
VC-1 | 50-300 | 2-3 | SUS304 | 180 | 140*560 | 1.1 | 0.4-0.6 |
VC-2 | 50-500 | 2-4 | SUS304 | 360 | 302*691 | 6 | 0.4-0.6 |
VC-3 | 800 | 2-4 | SUS304 | 720 | 445*852 | 12 | 0.4-0.6 |
VC-4 | 2500 | 2-4 | SUS304 | 1440 | 672*1400 | 40 | 0.4-0.6 |
VC-5 | 4500 | 2-4 | SUS304 | 2880 | 672*1513 | 60 | 0.4-0.6 |
