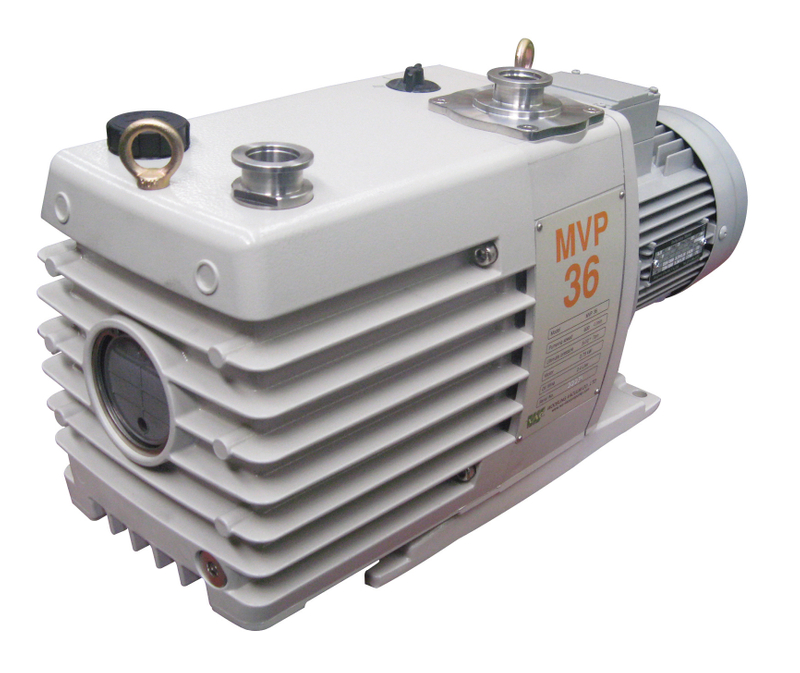

MVP series
Woosung
| Model | MVP6 | MVP12 | MVP24 | MVP36 | MVP60 | MVP90 | MVP144 | MVP216 | MVP324 | ||
| Displacemnet Speed | 60Hz | Liter/min | 6 | 12 | 24 | 36 | 0 | 90 | 144 | 216 | 324 |
| Ultimate Pressure | With gas ballast | Torr | 5x10-3 | ||||||||
| Without gas ballast | Torr | 5X10-4 | |||||||||
| Oil filling | Liter | 1.1 | 1.2 | 2.0 | 2.3 | 4.5 | 6.5 | 11 | 16 | 17 | |
| Inlet/Outlet port | DN | 25KF | 40KF | ISO63/40 | |||||||
| Motor power | 50/60Hz | kw | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | ||
| Noise level (without gas ballast) | dB | 50 | 50 | 52 | 52 | 56 | 56 | ||||
| Weight | kg | 21 | 22.5 | 38 | 41 | 68 | 94 | 172 | 290 | 358 | |
| Model | MVP6 | MVP12 | MVP24 | MVP36 | MVP60 | MVP90 | MVP144 | MVP216 | MVP324 | ||
| Displacemnet Speed | 60Hz | Liter/min | 6 | 12 | 24 | 36 | 0 | 90 | 144 | 216 | 324 |
| Ultimate Pressure | With gas ballast | Torr | 5x10-3 | ||||||||
| Without gas ballast | Torr | 5X10-4 | |||||||||
| Oil filling | Liter | 1.1 | 1.2 | 2.0 | 2.3 | 4.5 | 6.5 | 11 | 16 | 17 | |
| Inlet/Outlet port | DN | 25KF | 40KF | ISO63/40 | |||||||
| Motor power | 50/60Hz | kw | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | ||
| Noise level (without gas ballast) | dB | 50 | 50 | 52 | 52 | 56 | 56 | ||||
| Weight | kg | 21 | 22.5 | 38 | 41 | 68 | 94 | 172 | 290 | 358 | |
